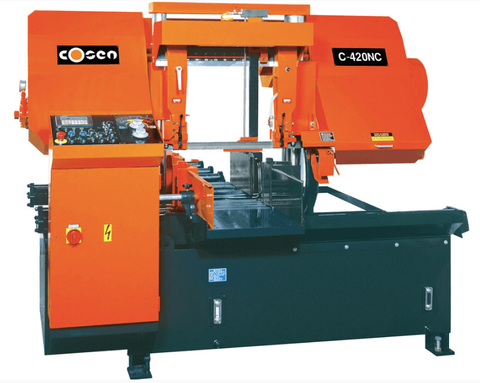

<p style="text-align:start;"><span style="color: rgb(61,142,185);background-color: rgb(255,255,255);font-size: 36px;font-family: Roboto, sans-serif;"><strong>C-420NC: SNC Automatic Saw With Shuttle Vise</strong></span><span style="color: rgb(61,142,185);font-size: 36px;"><strong> </strong></span></p>
<p><span style="color: rgb(71,85,119);font-size: 24px;"><strong>Capacity</strong></span></p>
<table><thead></thead><tbody><tr><td>Round</td><td>420 mm (12.6″)</td></tr><tr><td>Square</td><td>420 mm (12.6″)</td></tr><tr><td>Rectangle (W x H)</td><td>420 x 420 mm (16.5″ x 16.5″)</td></tr></tbody><tfoot></tfoot></table>
<p><span style="color: rgb(71,85,119);font-size: 24px;"><strong>Bundle Capacity</strong></span></p>
<table><thead></thead><tbody><tr><td>Width</td><td>190 ~ 360 mm</td></tr><tr><td>Height</td><td>190 ~ 360 mm</td></tr></tbody><tfoot></tfoot></table>
<p><span style="color: rgb(71,85,119);font-size: 24px;"><strong>Sawblade</strong></span></p>
<table><thead></thead><tbody><tr><td>Speed</td><td>20 ~ 100 m/min</td></tr><tr><td></td><td>(66 ~ 328 ft/min)</td></tr><tr><td>Size (L x W x T)</td><td>4770 x 41 x 1.3 mm</td></tr><tr><td></td><td>(187.8″ x 1.6″ x 0.05″</td></tr><tr><td>Tension</td><td>Hydraulic</td></tr></tbody><tfoot></tfoot></table>
<p><span style="color: rgb(71,85,119);font-size: 24px;"><strong>Motor Output</strong></span></p>
<table><thead></thead><tbody><tr><td>Sawblade</td><td>10 HP (7.5 kW)</td></tr><tr><td>Hydraulic</td><td>2 HP (1.5 kW)</td></tr><tr><td>Coolant</td><td>1/4 HP (0.19 kW)</td></tr></tbody><tfoot></tfoot></table>
<p><span style="color: rgb(71,85,119);font-size: 24px;"><strong>Automatic Indexing Length</strong></span></p>
<table><thead></thead><tbody><tr><td>Single</td><td>503mm (13.8″)</td></tr><tr><td>Multiple</td><td>Max 6500 mm (max 650″)</td></tr></tbody><tfoot></tfoot></table>
<p><span style="color: rgb(71,85,119);font-size: 24px;"><strong>Others</strong></span></p>
<table><thead></thead><tbody><tr><td>Hydraulic Tank</td><td>40 L (10.6 gal.)</td></tr><tr><td>Coolant Tank</td><td>85 L (22.5 gal.)</td></tr><tr><td>Vise Control</td><td>Hydraulic Full Stroke Cylinder</td></tr><tr><td>Height of Workbed</td><td>740 mm (29.1”)</td></tr><tr><td>Net / Gross Weight</td><td>2223 kg (4901lbs)</td></tr><tr><td>Floor Space (L x W x H)</td><td>2719 x 2576 x 1802 mm</td></tr><tr><td></td><td>(107.04″ x 101.4″ x 71″)</td></tr></tbody><tfoot></tfoot></table>
<p></p>


ホーム

ついて

ショーケース

連絡先

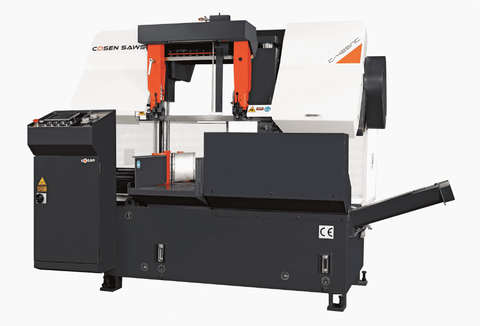

C-420NC Cosen Saws Bandsaw Machine

Round	420 mm (12.6″)
Square	420 mm (12.6″)
Rectangle (W x H)	420 x 420 mm (16.5″ x 16.5″)

Speed	20 ~ 100 m/min
	(66 ~ 328 ft/min)
Size (L x W x T)	4770 x 41 x 1.3 mm
	(187.8″ x 1.6″ x 0.05″
Tension	Hydraulic

Sawblade	10 HP (7.5 kW)
Hydraulic	2 HP (1.5 kW)
Coolant	1/4 HP (0.19 kW)

Hydraulic Tank	40 L (10.6 gal.)
Coolant Tank	85 L (22.5 gal.)
Vise Control	Hydraulic Full Stroke Cylinder
Height of Workbed	740 mm (29.1”)
Net / Gross Weight	2223 kg (4901lbs)
Floor Space (L x W x H)	2719 x 2576 x 1802 mm
	(107.04″ x 101.4″ x 71″)

Width	190 ~ 360 mm
Height	190 ~ 360 mm

Single	503mm (13.8″)
Multiple	Max 6500 mm (max 650″)
