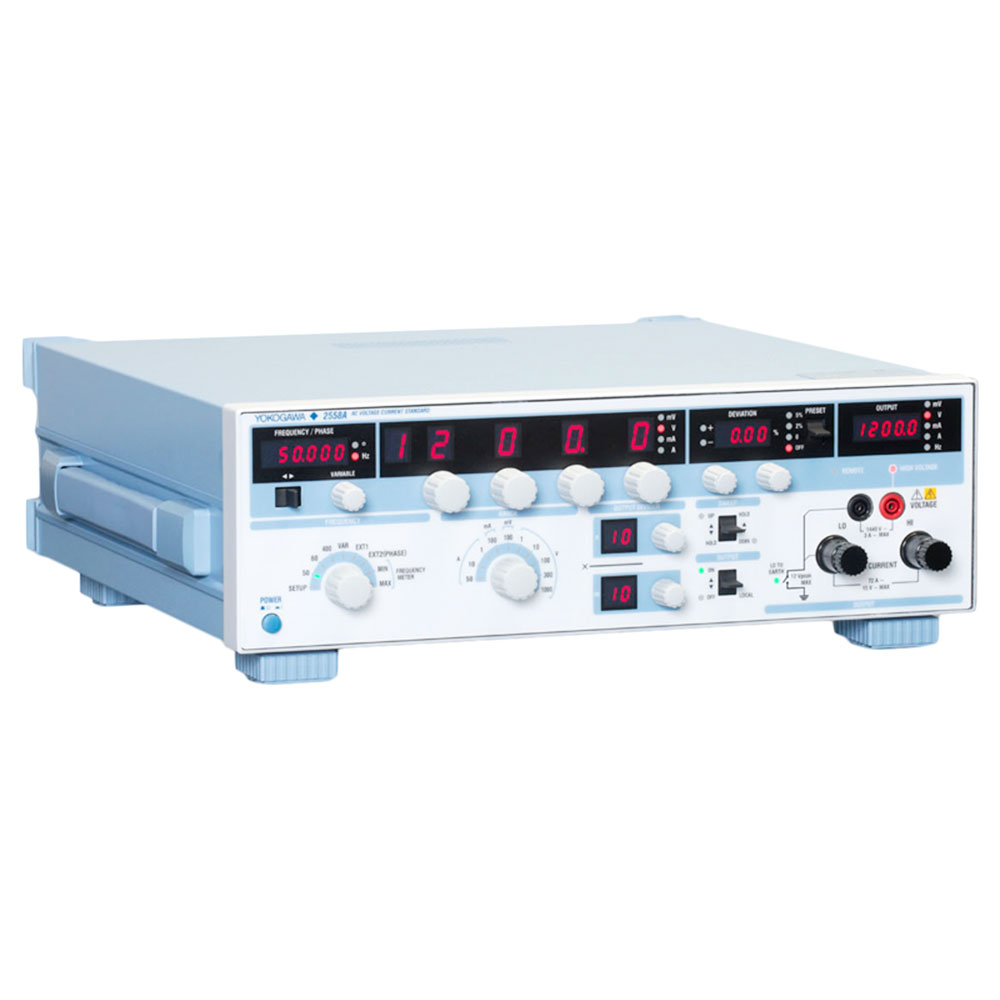

The 2558A AC Voltage Current Standard offers users the simple operation and reliability customers have come to trust from Yokogawa.
- Sweep (Voltage/Current/Frequency)
- Output Divider
- Direct Readout of the Deviation
- Digital Display of Output
- Common Current Output Terminals
- High Accuracy
- High Stability
- Wide Output Range
- Wide Frequency Range
High Accuracy
AC Voltage: +/- 0.04 %
AC Current: +/- 0.05 %
The 2558A AC Voltage Current Standard is more than sufficient to calibrate meters with a class 0.1 % accuracy.
10 to 120 % of range | |||
| +/- (% of setting + % of range) | |||
| 50/60 Hz | 40 ≤ f ≤ 400 Hz | 400 | |
| AC Voltage | 0.03 + 0.01* | 0.05 + 0.01 | 0.10 + 0.02 |
| AC Current | 0.04 + 0.01* | 0.06 + 0.01 | 0.12 + 0.02 |
* Add 0.1% of range when output is 120% to 144%.
| 1 to 10% of range | |||
| +/- (% of range) | |||
| 50/60 Hz | 40 ≤ f ≤ 400 Hz | 400 | |
| AC Voltage | 0.013 | 0.015 | 0.03 |
| AC Current | 0.014 | 0.016 | 0.032 |
High Stability
AC Voltage/Current: +/- 50 ppm/h
+/- (20 ppm of range + 30 ppm of range)/h
Perform measurements with high repeatability over time
Wide Output Range
AC Voltage: 1.00 mV to 1200.0 V
AC Current: 1.00 mA to 60.00 A
6 voltage ranges (100 m/1/10/100/300/1000 ([V]))
4 current ranges (100 m/1/10/50 ([A]))
The generation range is 0 to 144 % of range
Wide Frequency Range
40 to 1000 Hz (Frequency accuracy: +/- 50 ppm)
The 2558A provides fixed frequencies of 50/60 Hz (commercial) and 400 Hz (marine and aviation), as well as variable frequencies from 40 to 1000 Hz.
The high frequency accuracy of the 2558A (50 ppm) also enables it to be used to calibrate frequency meters.
Multiple 2558A units can be synchronized using the internal phase shifter. This means that two 2558As can be used as accurate sources of voltage and current for calibrating power meters.
