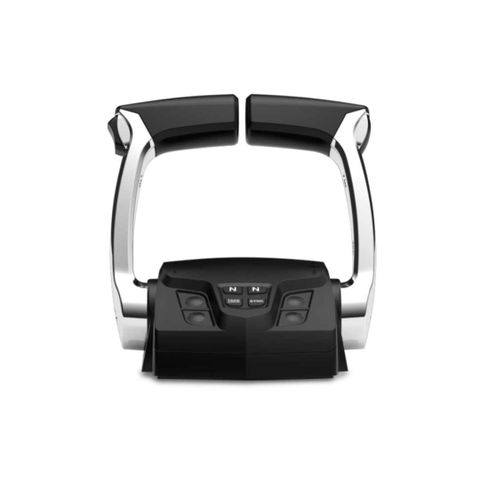

Dometic Marine Electronic Controls i7800
Last Update
Price:
R.F.Q.
Share Product:
Detail
Features:
- Two cable actuators in a single chassis for complete shift and throttle control
- Utilizes automotive high-speed CAN network (250 kbps)
- Maximum programable cable travel: 3.14” (80 mm)
- Maximum load capability: 135 lbs [600 N]
- Maximum cable speed: 4.72 in/s [120 mm/s]
- Unit weight: 15 lbs [6.75 kg]
- Programmable home position
- Standard or customizable throttle curves forward and reverse
- Compatible with SeaStar’s Xtreme family of control cables (CCX633XX series)
- Dual redundant position sensing on all moving components
- Rugged electronics for 12 VDC applications
- Integrated neutral start protection (NSP) switch
- Low backlash position control
- Meets or exceeds ABYC, CE, ISO, and SAE electrical and environmental requirements - RPM input: NMEA 2000 or analog pulse compatible
- User settable trolling mode
- Single lever operation syncs both engine RPMs
- The control head features a universal trim switch model built into the port handle
- Independent trim switches available (dash mount kit HA5491)
- Maximum of three control heads per vessel
- Single or twin-engine applications
- Override feature provides simple shift and thro
