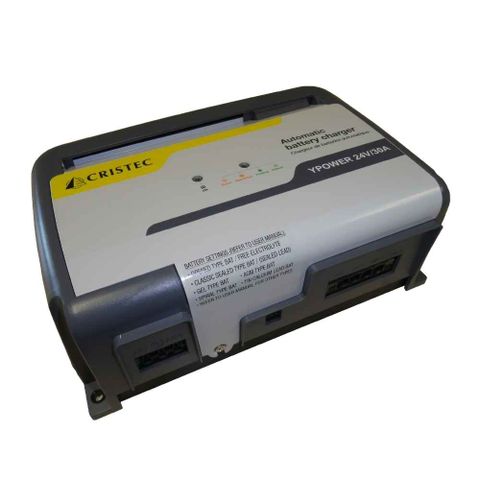

Cristec Battery Chargers AC - DC (YPOWER) 24VDC Range 24V/30A

Silent operating:

• CRISTEC is the only manufacturer to offer chargers with natural convection (without fan) up to 40A * included (* in 12V; 20A in 24V). This specificity gives them totally silent operation and an optimized lifespan. Therefore, they can be installed anywhere on board, including under a berth. The more powerful models, 12V / 60A and 24V / 30A, have a controlled fan. In other words, the fan will only operate at the very start of charging (the Boost phase) and/or when the ambient temperature is high.

Thermal Performance:

• Rated charge up to +60°C with no derating
• can be installed in an engine room
• Model 12V/40A Ignition protected according to standards SAE J1171 and ISO8846

Easy connection:

• Quick, reliable, and friendly mounting
• AC & DC plug connectors included

5-stage charging profile:

• Boost: charges batteries to 80% of full charge
• Absorption: slowly completes remaining charge to 100%
• Floating: maintains battery charge
• Automatic refresh: prevents sulphation and revitalizes batteries, selectable by internal switch
• Reboost: new automatic Boost phase if batteries demand needs it.
• Power-supply mode is also available.
• IU mode by inhibiting the BOOST using the internal switch.

Adaptative charge:

• Presence of a custom-made and simultaneous recharge of 3 battery banks, including one dedicated to the motor battery.
• YPOWER chargers are compatible with all types of batteries:
• Opened classic lead
• Sealed, Gel or AGM
• Spiral sealed
• Lithium Iron Phosphate ( LiFePO4 ) with BMS

Applications:

• POWER AC-DC battery chargers adapt to different markets and applications:
• Professional marine: naval, service boat, fishing boat, passenger boat, tug, barge, barge, lighthouse and beacon.
• Recreational marine: yachting, sailing boat, motor boat, electric boat, catamaran, speedboat, etc.

Mobile :

• Emergency vehicles: firemen, ambulance, rescue, depollution, etc.
• Recreational vehicles: motorhome, golf course, etc.
• Special vehicles: surveillance, transport of animals, Van, public works etc.
• Industry: automated cleaning, on-board camera, recognition robots, telecommunications, etc.
• Wind-powered: landsites
• Solar: isolated sites
