Novatork TES Series Torque Tester
Last Update
Price:
R.F.Q.
Share Product:
Detail
● Accuracy: ±1% from 10% to 100% of capacity.
● 4 Torque units: Lbft, Lbin, Nm and Kgcm.
● 3 Test modes: First Peak, Peak and Track.
● When the set torque is reached, there will be an audible and visual alarm.
● Peak value hold function for First Peak and Peak mode.
● Torque error% display function.
● Memory function: Store 1500 sets of data as required, each set include time, unit, and value.
● Switchable backlight for dark conditions.
● Battery level display.

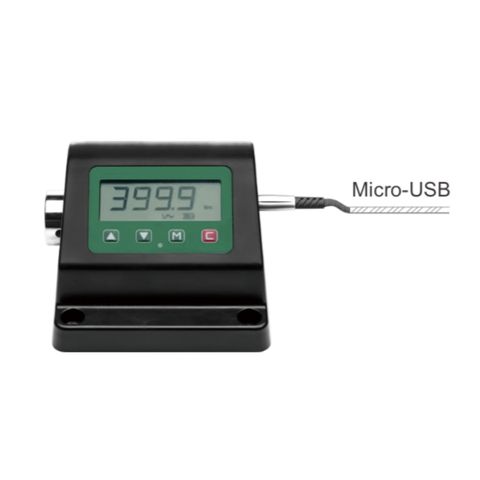

● Micro-USB port for charging and uploading data to computer.
● The built-in lithium battery can be charged by the dedicated the charging adapter.
● Four bolts are designed at the bottom for fixing the tester on a workbench or other floor.
● Automatically shut off after 10 minutes of non use.

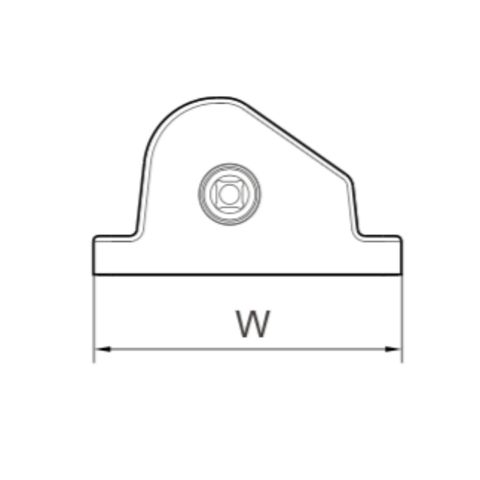

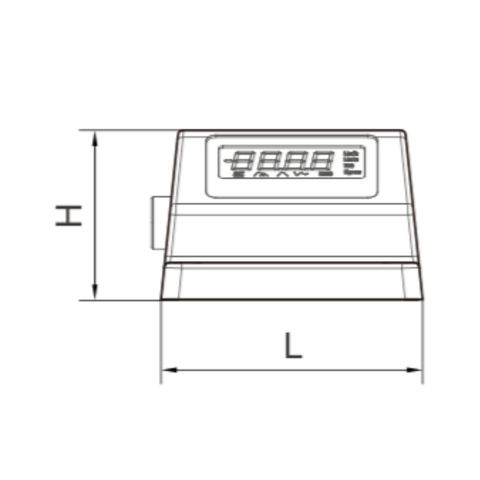

| Item No. | Square Drive | Torque Range (N.m) | Torque Range (Lb.ft) | Length (L) (mm) | Width (W) (mm) | Height (H) (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| TES112 | 1/4” | 1.2-12 | 10.6-106.2* | 135 | 152 | 87 | 2.2 |
| TES225 | 3/8" | 2.5-25 | 1.8-18 | 135 | 152 | 87 | 2.4 |
| TES240 | 3/8" | 4.0-40 | 3.0-30 | 135 | 152 | 87 | 2.6 |
| TES275 | 3/8" | 7.5-75 | 5.5-55 | 135 | 152 | 87 | 2.8 |
| TES3150 | 1/2" | 15-150 | 11-110 | 135 | 152 | 87 | 2.9 |
| TES3250 | 1/2" | 25-250 | 18.4-184 | 135 | 152 | 87 | 3.1 |
| TES3400 | 1/2" | 40-400 | 29.5-295 | 135 | 152 | 87 | 3.2 |
| TES4650 | 3/4" | 65-650 | 48-480 | 135 | 152 | 87 | 3.2 |
| TES41100 | 3/4" | 110-1100 | 81.1-811 | 135 | 152 | 87 | 3.4 |
* Unit is Lb.in.
