Novatork MS Series Mechanical Torque Screwdriver
Last Update
Price:
R.F.Q.
Share Product:
Detail
● Accuracy: ±6%, which conforms to the ASME B107.14 standard.

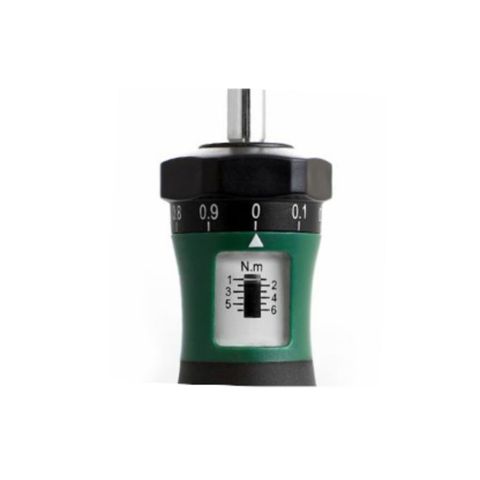

● Clear scales with fine graduations.

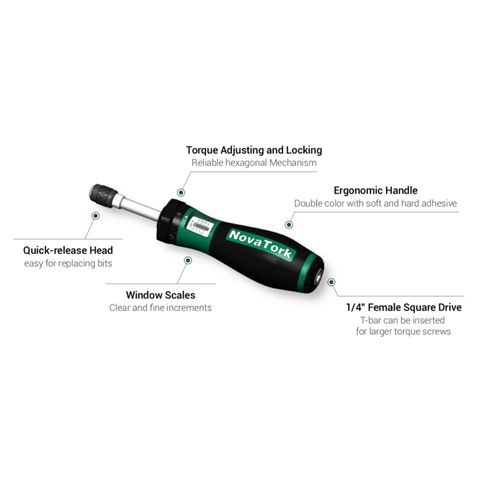

● 1/4” Hexagon socket with a quick-release design, easy for changing various bits.
● The front hex push-pull mechanism enables torque adjustment and locking, quick and reliable.
● When the set value is reached, there will be a “Click” audio alarm.
● Constructed with oil-resistant, anti-slip engineering plastic for enhanced durability.
● Features an ergonomic dual-color handle with soft-rigid material combination for secure comfort.

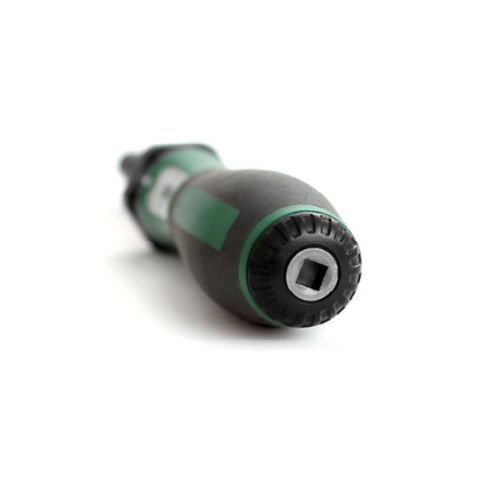

● The 1/4” female square hole at the end accommodates a T-handle for higher-torque screw tightening (usually for 250 cNm and above).
| Item No. | Square Drive | Torque Range (cN.m) | Increment (cN.m) | Length (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| MSM1100 | 1/4" | 20-100 | 2 | 182 | 38 | 0.32 |
| MSM1250 | 1/4" | 50-250 | 5 | 182 | 38 | 0.32 |
| MSM1360 | 1/4" | 60-360 | 5 | 182 | 38 | 0.32 |
| MSM16 | 1/4" | 1.0-6.0* | 0.1* | 182 | 38 | 0.32 |
* Unit is N.m.
| Item No. | Square Drive | Torque Range (Lb.in) | Increment (Lb.in) | Lenght (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| MS118 | 1/4" | 3.0-18 | 0.3 | 182 | 38 | 0.32 |
| MS136 | 1/4" | 6.0-36 | 0.5 | 182 | 38 | 0.32 |
| MS150 | 1/4" | 10-50 | 1 | 182 | 38 | 0.32 |
