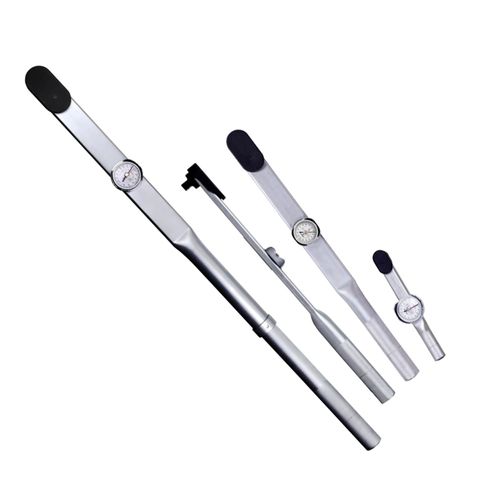

Novatork DSM Model One-Way Dial Torque Wrench
Last Update
Price:
R.F.Q.

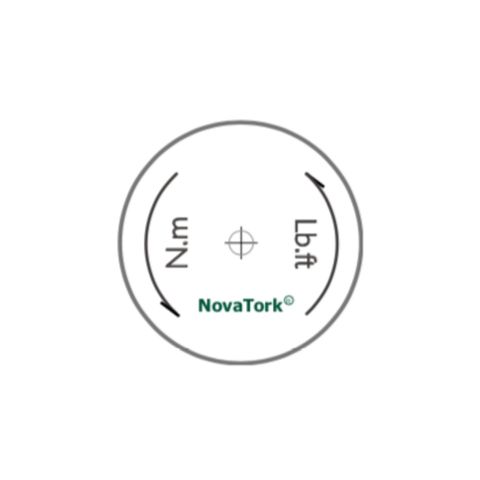

Clockwise operation only toggle between Metric/English scales by rotating the dial 180°
Share Product:
Detail
| Item No. | Square Drive | Torque Range (N.m) | Torque Range (Lb.ft) | Increment (N.m) | Increment (Lb.ft) | Length (mm) | Width (mm) | Weight (kg) | Extension |
|---|---|---|---|---|---|---|---|---|---|
| DSM12 | 1/4" | 0.4-2 | 3.6-18* | 0.025 | 0.2* | 310 | 37 | 0.57 | - |
| DSM13 | 1/4" | 0.6-3 | 4.9-24.5* | 0.04 | 0.35* | 310 | 37 | 0.57 | - |
| DSM16 | 1/4" | 1.2-6 | 10-50* | 0.075 | 0.625* | 310 | 37 | 0.57 | - |
| DSM18 | 1/4" | 1.6-8 | 14-70* | 0.1 | 1* | 310 | 37 | 0.57 | - |
| DSM212 | 3/8" | 2.4-12 | 20-100* | 0.15 | 1.25* | 310 | 37 | 0.57 | - |
| DSM217.5 | 3/8" | 3.5-17.5 | 30-150* | 0.25 | 2* | 310 | 37 | 0.57 | -- |
| DSM220 | 3/8" | 4-20 | 36-180* | 0.25 | 2* | 310 | 37 | 0.57 | - |
| DSM225 | 3/8" | 5.0-25 | 44-220* | 0.25 | 2* | 310 | 37 | 0.57 | - |
| DSM230 | 3/8" | 6-30 | 50-250* | 0.4 | 2.5* | 310 | 37 | 0.57 | - |
| DSM235 | 3/8" | 7.0-35 | 60-300* | 0.5 | 4* | 400 | 37 | 0.76 | - |
| DSM240 | 3/8" | 8-40 | 70-350* | 0.5 | 5* | 400 | 37 | 0.76 | - |
| DSM250 | 3/8" | 10-50 | 7.0-35 | 0.5 | 0.5 | 400 | 37 | 0.76 | - |
| DSM260 | 3/8" | 12-60 | 9.0-45 | 0.75 | 0.5 | 400 | 37 | 0.76 | - |
| DSM3100 | 1/2" | 20-100 | 14-70 | 1 | 1 | 480 | 37 | 0.91 | - |
| DSM3120 | 1/2" | 24-120 | 18-90 | 1.5 | 1 | 480 | 37 | 0.91 | - |
| DSM3140 | 1/2" | 28-140 | 20-100 | 2 | 1 | 480 | 37 | 0.91 | - |
| DSM3200 | 1/2" | 40-200 | 30-150 | 2.5 | 2 | 550 | 37 | 1.05 | - |
| DSM3250 | 1/2" | 50-250 | 36-180 | 2.5 | 2 | 550 | 37 | 1.05 | - |
| DSM3280 | 1/2" | 56-280 | 40-200 | 4 | 2.5 | 550 | 37 | 1.05 | - |
| DSM3350 | 1/2" | 70-350 | 50-250 | 5 | 2.5 | 550 | 37 | 1.05 | - |
| DSM4400 | 3/4" | 80-400 | 60-300 | 5 | 4 | 818 | 59 | 3.4 | - |
| DSM4500 | 3/4" | 100-500 | 70-350 | 5 | 5 | 818 | 59 | 3.4 | - |
| DSM4600 | 3/4" | 120-600 | 90-450 | 7.5 | 5 | 1192 | 59 | 6.4 | 1 |
| DSM4800 | 3/4" | 160-800 | 120-600 | 10 | 7.5 | 1192 | 59 | 6.4 | 1 |
| DSM41000 | 3/4" | 200-1000 | 140-700 | 10 | 10 | 1192 | 59 | 6.4 | 1 |
| DSM51400 | 1" | 280-1400 | 200-1000 | 20 | 10 | 1620 | 59 | 8.8 | 1 |
| DSM52000 | 1" | 400-2000 | 300-1500 | 25 | 20 | 1620 | 59 | 8.8 | 1 |
* Unit is Lb.in.
