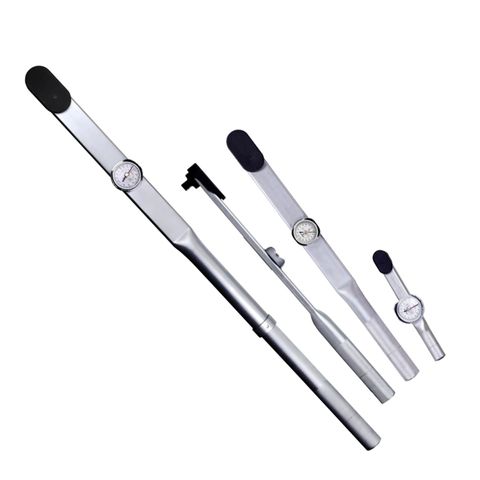

Novatork DS-D Model Two-Way Dial Torque Wrench
Last Update
Price:
R.F.Q.

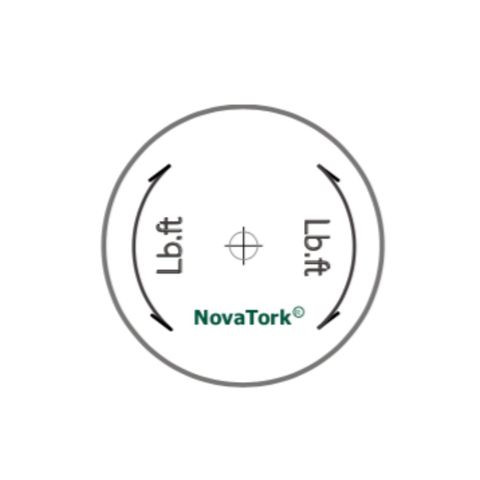

Bidirectional operation with Metric or English scale
Share Product:
Detail
| Item No. | Square Drive | Torque Range (Lb.ft) | Increment (Lb.ft) | Length (mm) | Width (mm) | Weight (mm) | Extension |
|---|---|---|---|---|---|---|---|
| DS118-D | 1/4" | 3.6-18* | 0.2* | 310 | 37 | 0.57 | - |
| DS124.5-D | 1/4" | 4.9-24.5* | 0.35* | 310 | 37 | 0.57 | - |
| DS150-D | 1/4" | 10-50* | 0.625* | 310 | 37 | 0.57 | - |
| DS170-D | 1/4" | 14-70* | 1* | 310 | 37 | 0.57 | - |
| DS2100-D | 3/8" | 20-100* | 1.25* | 310 | 37 | 0.57 | - |
| DS2150-D | 3/8" | 30-150* | 2* | 310 | 37 | 0.57 | - |
| DS2180-D | 3/8" | 36-180* | 2* | 310 | 37 | 0.57 | - |
| DS2220-D | 3/8" | 44-220* | 2* | 310 | 37 | 0.57 | - |
| DS2250-D | 3/8" | 50-250* | 2.5* | 310 | 37 | 0.57 | - |
| DS2300-D | 3/8" | 60-300* | 4* | 400 | 37 | 0.76 | - |
| DS2350-D | 3/8" | 70-350* | 5* | 400 | 37 | 0.76 | - |
| DS235-D | 3/8" | 7.0-35 | 0.5 | 400 | 37 | 0.76 | - |
| DS245-D | 3/8" | 9.0-45 | 0.5 | 400 | 37 | 0.76 | - |
| DS375-D | 1/2" | 14-70 | 1 | 480 | 37 | 0.91 | - |
| DS390-D | 1/2" | 18-90 | 1 | 480 | 37 | 0.91 | - |
| DS3100-D | 1/2" | 20-100 | 1 | 480 | 37 | 0.91 | - |
| DS3150-D | 1/2" | 30-150 | 2 | 550 | 37 | 1.05 | - |
| DS3180-D | 1/2" | 36-180 | 2 | 550 | 37 | 1.05 | - |
| DS3200-D | 1/2" | 40-200 | 2.5 | 550 | 37 | 1.05 | - |
| DS3250-D | 1/2" | 50-250 | 2.5 | 550 | 37 | 1.05 | - |
| DS4300-D | 3/4" | 60-300 | 4 | 818 | 59 | 3.4 | - |
| DS4350-D | 3/4" | 70-350 | 5 | 818 | 59 | 3.4 | - |
| DS4450-D | 3/4" | 90-450 | 5 | 1192 | 59 | 6.4 | 1 |
| DS4600-D | 3/4" | 120-600 | 7.5 | 1192 | 59 | 6.4 | 1 |
| DS4700-D | 3/4" | 140-700 | 10 | 1192 | 59 | 6.4 | 1 |
| DS51000-D | 1" | 200-1000 | 10 | 1620 | 59 | 8.8 | 1 |
| DS51500-D | 1" | 300-1500 | 20 | 1620 | 59 | 8.8 | 1 |
* Unit is Lb.in.
