<p style="text-align:start;"><span style="color: rgb(44,130,201);background-color: rgb(255,255,255);font-size: 30px;font-family: Roboto, sans-serif;"><strong>SV-4060: Traversing Head Vertical Plate Saw</strong></span><span style="font-size: 30px;"><strong> </strong></span></p>
<p><span style="color: rgb(0,0,0);background-color: rgb(255,255,255);font-size: 16px;font-family: Roboto, sans-serif;">C<strong>apacity</strong></span><strong> </strong></p>
<table><thead></thead><tbody><tr><td>Height</td><td>400 mm (15.7″)</td></tr><tr><td>Throat</td><td>660 mm (26″)</td></tr><tr><td>Cutting Length</td><td>2000 – 7000 mm (79″ – 276″)</td></tr></tbody><tfoot></tfoot></table>
<p><span style="color: rgb(71,85,119);background-color: rgb(255,255,255);font-size: 24px;font-family: Roboto, sans-serif;"><strong>Sawblade</strong></span></p>
<table><thead></thead><tbody><tr><td>Speed</td><td>20 – 80 m/min (65 – 262 ft/min)</td></tr><tr><td>Size (L x W x T)</td><td>5815 x 54 x 1.6 (229″ x 2″ x 0.06″)</td></tr></tbody><tfoot></tfoot></table>
<p><span style="color: rgb(71,85,119);background-color: rgb(255,255,255);font-size: 24px;font-family: Roboto, sans-serif;"><strong>Motor Output</strong></span><span style="color: rgb(71,85,119);font-size: 24px;"><strong> </strong></span></p>
<table><thead></thead><tbody><tr><td>Sawblade</td><td>7.5 HP (5.625 kW)</td></tr><tr><td>Hydraulic</td><td>3 HP (2.25 kW) / 2 HP (1.5 kW)</td></tr><tr><td>Coolant</td><td>1/4 HP (0.1875 kW)</td></tr></tbody><tfoot></tfoot></table>
<p><span style="color: rgb(71,85,119);background-color: rgb(255,255,255);font-size: 24px;font-family: Roboto, sans-serif;"><strong>Others</strong></span><span style="color: rgb(71,85,119);font-size: 24px;"><strong> </strong></span></p>
<table><thead></thead><tbody><tr><td>Coolant Tank (6000 mm)</td><td>1000 L (220 gal.)</td></tr><tr><td>Height of Workbed</td><td>1550 mm (61″)</td></tr><tr><td>Net / Gross Weight</td><td>16000 kg (35200 lbs)</td></tr><tr><td>Table Length 6M</td><td>9000 mm (354″)</td></tr><tr><td>Floor Space (W x H)</td><td>3300 x 3500 mm (130″ x 138″)</td></tr></tbody><tfoot></tfoot></table>
<p></p>


Home

About

Showcase

Contact

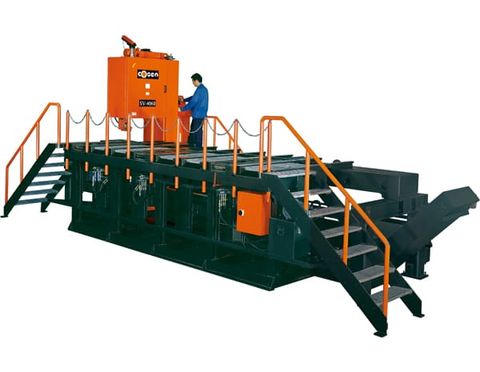

SV-4060 Cosen Saws Bandsaw Machine

Height	400 mm (15.7″)
Throat	660 mm (26″)
Cutting Length	2000 – 7000 mm (79″ – 276″)

Speed	20 – 80 m/min (65 – 262 ft/min)
Size (L x W x T)	5815 x 54 x 1.6 (229″ x 2″ x 0.06″)

Sawblade	7.5 HP (5.625 kW)
Hydraulic	3 HP (2.25 kW) / 2 HP (1.5 kW)
Coolant	1/4 HP (0.1875 kW)

Coolant Tank (6000 mm)	1000 L (220 gal.)
Height of Workbed	1550 mm (61″)
Net / Gross Weight	16000 kg (35200 lbs)
Table Length 6M	9000 mm (354″)
Floor Space (W x H)	3300 x 3500 mm (130″ x 138″)
