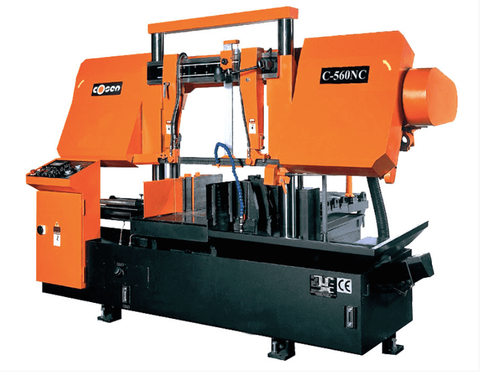

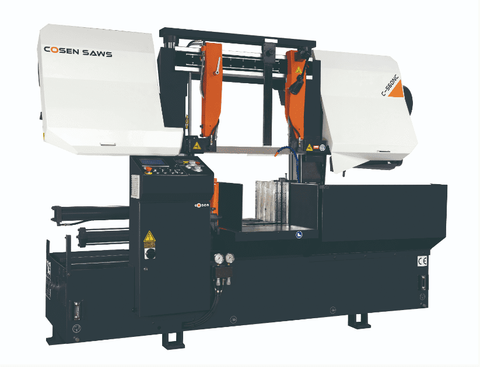

C-560NC Cosen Saws Bandsaw Machine
Last Update
Price:
R.F.Q.
Share Product:
Detail
C-560NC: SNC Automatic Saw With Shuttle Vise
Capacity
| Round | 560 mm (22″) |
| Square | 560 mm (22″) |
| Rectangle (W x H) | 600 x 560 mm (23.6″ x 22″) |
Bundle Capacity
| Width | 250 ~ 470 mm |
| Height | 150 ~ 315 mm |
Sawblade
| Speed | 20 ~ 100 m/min (66 ~ 328 fpm) |
| Size (L x W x T) | 6040 x 54 x 1.6 mm |
| (238″ x 2.1″ x 0.06″) | |
| Tension | Hydraulic |
Motor Output
| Sawblade | 10 HP (7.5 kW) |
| Hydraulic | 2 HP (1.5 kW) |
| Coolant | 1/4 HP (0.19 kW) |
Automatic Indexing Length
| Single | 600 mm (23.6″) |
| Multiple | Max 6500 (max. 650″) |
Others
| Hydraulic Tank | 40 L (10.6 gal.) |
| Coolant Tank | 85 L (22.5 gal.) |
| Vise Control | Hydraulic Full Stroke Cylinder |
| Height of Workbed | 770 mm (30.3”) |
| Net / Gross Weight | 3462 kg (7632 lbs) |
| Floor Space (L x W x H) | 3450 x 2274 x 2180 mm |
| (136″ x 90″ x 86″) |
