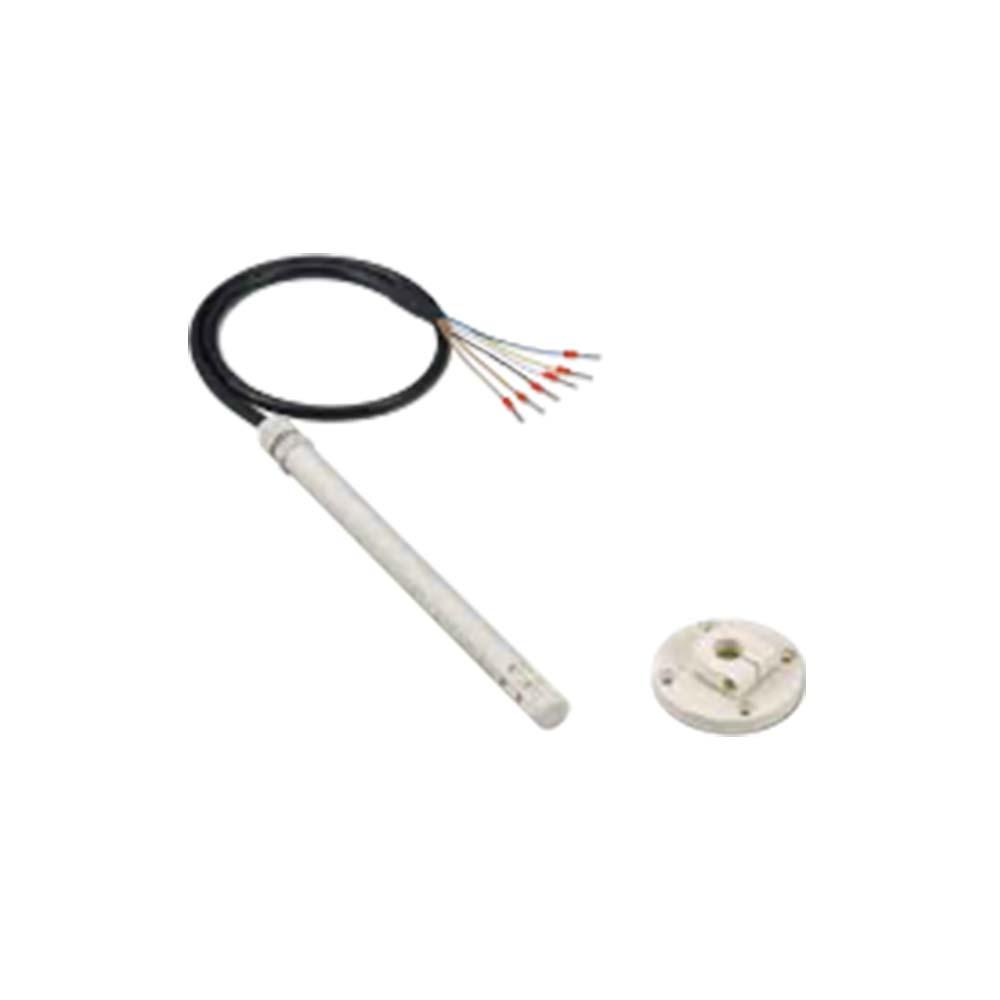

THS07 3-Wire Temperature & Humidity Transmitter for Probe Type

Application

-Monitoring for HVAC process/ air conditioning/ environmental ventilation control.

-Environmental monitoring for building/ factory/ clean room/ Lab.

-Monitoring for storeroom/ crisper/ agriculture/ food industry.

-Temperature and humidity measuring in machinery equipment

Input ⋯⋯⋯⋯⋯⋯⋯ CapacitiveHumiditySensor&PT100Ω

Measurement range ⋯⋯ temperature: PT100;humidity: 0~100%

Max working range ⋯ temperature0~50℃；humidity:5~95%

Recommended working range ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯ temperature15~35℃；humidity:20~80%

Output

Output ⋯⋯⋯⋯⋯⋯⋯ Humidity:0~10V / Temperature:RTD

Signal connection ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯3-Wire

Accuracy

Temperature ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯ ±0.3℃+0.002℃xtactual

Humidity ⋯⋯⋯⋯⋯⋯ ±3%RH(30~70%) of F.S. ,at +25℃ ±5%RH(20%~80%) of F.S. ,at+ 15~35℃

Temperature influence ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯ 0.2% RH/℃

Load resistance ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯ ≧10KΩ

Output calibration (ZERO)adjustment degree ⋯⋯⋯⋯⋯⋯ 10% of zero-point and full-range

Response time(≧1m/s) ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯ ＜20S

Environment

Media ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯ air

Working environment temperature ⋯⋯⋯⋯⋯⋯⋯ 0 ~+50℃

Storage temperature ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯ -5~+60℃

Max. flow speed ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯ ≦15m/sec

Electrical Protection

Power supply ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯ 24VDC±20%

Consumption current ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯ 19mA(3-wire)

Electrical connection ⋯⋯⋯⋯⋯ PVC cable 0.32mm2*6C

Installation ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯flange installation

Protection degree ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯IP24

Electrical protection ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯ ■Polarity protection■over-voltage■short circuit

Housing ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯ PC fire-proof class

Cable ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯ PVC

Weight ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯ 17g(without cable)
