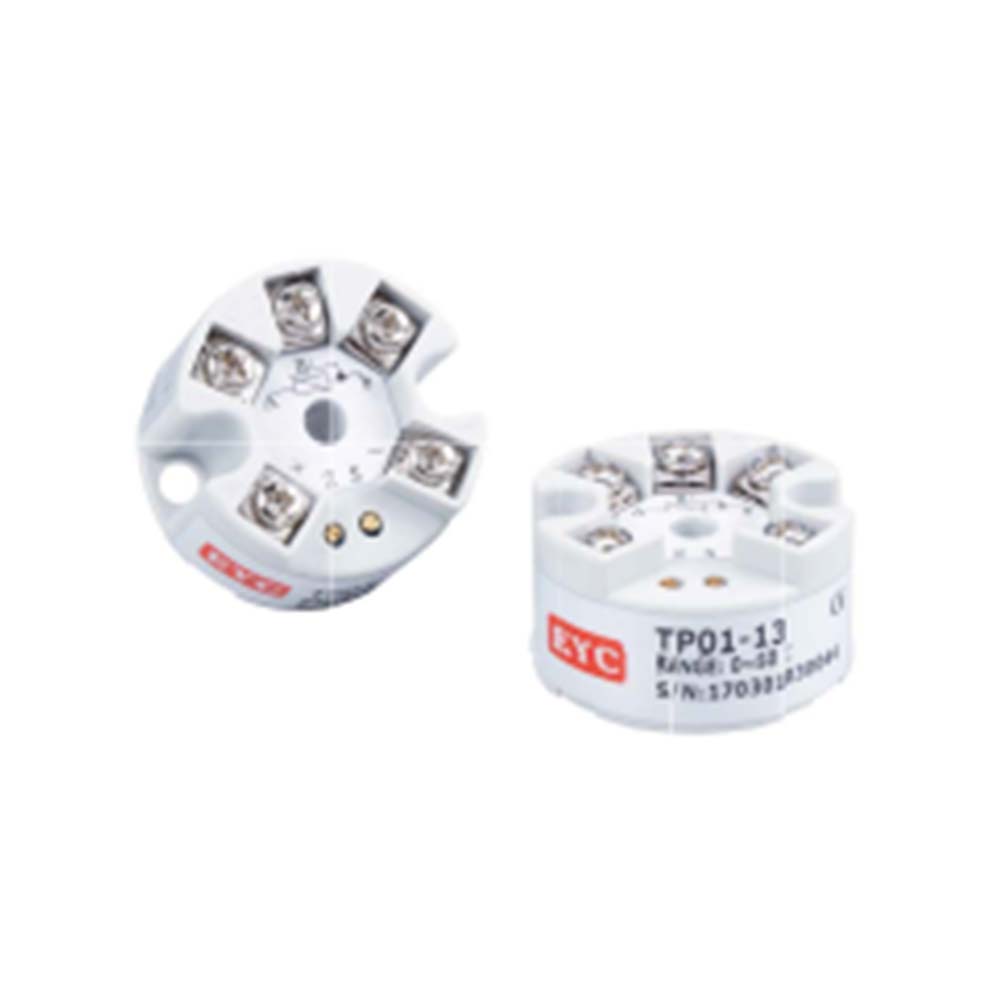

EYC TP01 2-Wire RTD Temperature Transmitter for Head-Mounting Type

INPUT

Input…....................................................................PT 100Ω (3-wire)

Cable resistance …..........≤ 50 Ω (3 wires with the same resistance)

PT100Ω sensor current …....................................................< 0.8mA

ZERO adjustment range ….....................................................±10 %

SPAN adjustment range ….....................................................±10 %

OUTPUT

Output ….................................................................4~20 mA ; 2-wire

Accuracy …................................................................. ±0.1 % of F.S.

Load resistance …........................≤ (supply voltage - 8 V) / 0.02A Ω

Load resistance stability …........................................±0.05% / 100Ω

Power supply stability …................................................±0.025% / V

Temperature drift …...............................................< ±0.015% fs / °C

Calibration temperature …...................................................20~28°C

Response time…................................................................< 250 ms

PROTECTION

PT100Ω signal disconnection protection & output …........... >23mA

PT100Ω signal short circuit, protection & output …............... < 3mA

Output polarity protection …........................................................Yes

ELECTRICAL SPECIFICATION

Power supply …..............................................................10~30 VDC

Working temperature …..................................................... -20~60°C

Working humidity …........................................0~95% rh (non-cond.)

Protection degree …...........................housing: IP30 ; terminal: IP10

Housing …..................................................................................ABS

Weight ….....................................................................................40g
